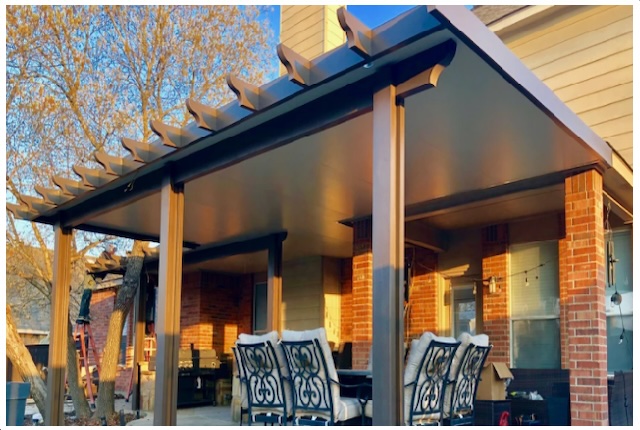

Structall: Aluminum 7″ And 10″ I-Beam – Edge Beams Performance Evaluation Report
Structall: Aluminum 7″ And 10″ I-Beam – Edge Beams Performance Evaluation Report
$150.00 – $200.00 or ( 15 Tokens - 20 Tokens )
This certification is applicable to Structall’s Aluminum 7″ & 10″ I-Beam – Edge Beams for use with open structures. This plan certifies the edge beam spans only. It does not consider wind forces on the accessory nor does it approve any panel capacity. The installer shall consider the additional load on panels when determining their allowable capacity and span. It is sold as an engineered sealed document and meets the requirements of the applicable building code for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit. (Previous # 21-42210)
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.
For site-specific projects, click here to request a quote.
For states not listed here, please contact us.
Product Documents
Engineering Drawings
Weight | 0.64 lbs |
---|---|
Dimensions | 0.1 × 17 × 11 in |
Plan Format | Digitally Sealed E-Permit File, Raised Sealed Hardcopy |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Plan Designer | Engineering Express |
Brand | Structall Building Systems, Inc. |
Material | Aluminum, EPS |
Storefront | Structall, Engineering Express |
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
