Structall: Fan Beam Support Details Perfomance Evaluation Report 2023 Update
Structall: Fan Beam Support Details Perfomance Evaluation Report 2023 Update

Structall: Fan Beam Support Details Perfomance Evaluation Report

$170.00 – $200.00 or ( 17 Tokens - 20 Tokens )

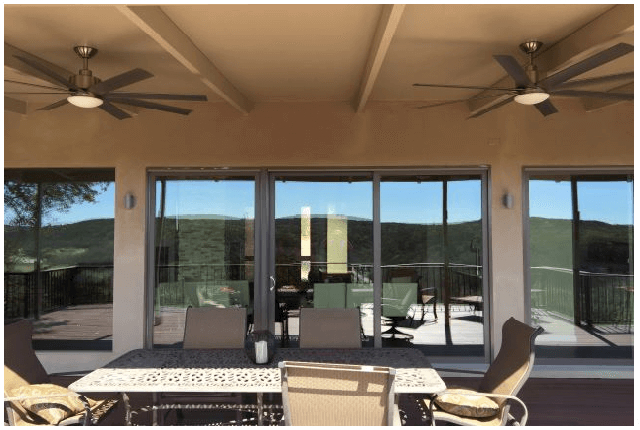

This certification is applicable to Structall’s Fan Beam Support Details. This plan certifies the dead load capacity of the fan beam supports only. It does not consider wind forces on the accessory nor approve any panel capacity. The installer shall consider additional load on panels when determining their allowable capacity and span. It is sold as an engineered sealed document and meets the requirements of the applicable building code for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit. (Previous # 20-30357)

This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.

For site-specific projects, click here to request a quote.

For states not listed here, please contact us.

Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Product Documents

Engineering Drawings

Product Documents

Engineering Drawings

Weight 0.64 lbs
Dimensions 0.1 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Plan Type

Master Plan Sheet – MPS, Manufacturer Plans
Brand

Structall Building Systems, Inc.
Material

Aluminum, EPS
Storefront

Structall, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
