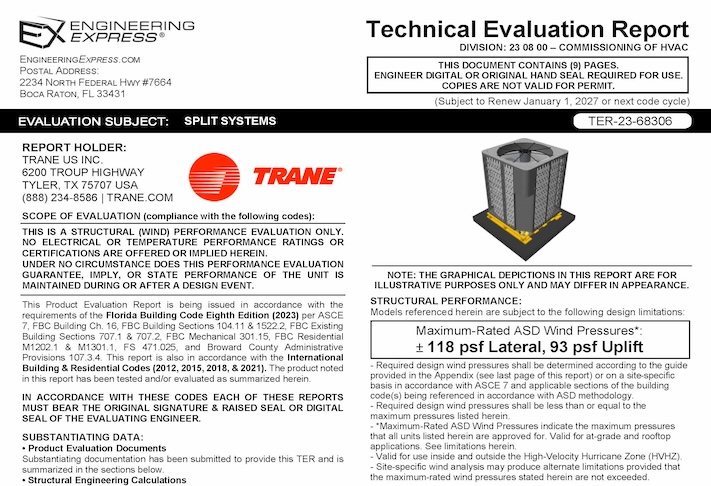

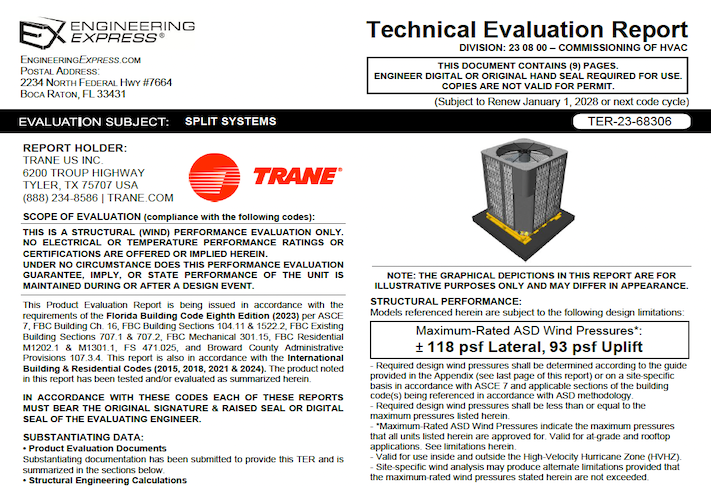

Trane: Split Systems Technical Evaluation Report
Trane: Split Systems Technical Evaluation - Image 2
Trane: Split Systems Technical Evaluation - Image 3
Trane: Split Systems Technical Evaluation Report

Trane: Split Systems Technical Evaluation

Price range: $70.00 through $90.00 or ( 7 Tokens - 9 Tokens )

This document is sold as an engineer-certified report for permitting Trane: Split System Units meeting the model numbers below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #20-28667)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Cabinet Group Unit Dimensions (in)
Width  Depth Height
A 23.625 23.625 32.625
23.63 23.63 28.75
23.625 23.625 28.625
B 25.63 25.63 28.75
25.625 25.625 28.625
C 29.75 29.75 36.75
29.75 29.75 36.625
29.75 29.75 32.75
29.75 29.75 32.625
29.75 29.75 28.75
29.75 29.75 28.625
D 34.25 34.25 45.13
34.25 34.25 44.75
34.25 34.25 44.625
34.25 34.25 37.13
34.25 34.25 36.75
34.25 34.25 36.625
34.25 34.25 36.625
34.25 34.25 33.13
34.25 34.25 29.13
34.25 34.25 28.625
Model Number
A4AC3017* A4AC5036* A4HP6018* A5HP4024* N5AC5024
A4AC3018* A4AC5042* A4HP6024* A5HP4030* N5AC5030
A4AC3023* A4AC5048* A4HP6030* A5HP4036* N5AC5030
A4AC3024* A4AC5060* A4HP6036* A5HP4042* N5AC5036
A4AC3029* A4AC6018* A4HP6042* A5HP4048* N5AC5036
A4AC3030* A4AC6024* A4HP6048* A5HP4060* N5AC5042
A4AC3035* A4AC6030* A4HP6060* A5HP5018* N5AC5042
A4AC3036* A4AC6031* A5AC3018* A5HP5024* N5AC5048
A4AC3042* A4AC6036* A5AC3024* A5HP5030* N5AC5048
A4AC3048* A4AC6037* A5AC3030* A5HP5036* N5AC5060
A4AC3049* A4AC6042* A5AC3036* A5HP5042* N5AC5060
A4AC3060* A4AC6048* A5AC3042* A5HP5048* N5HP4018
A4AC4017* A4AC6060* A5AC3048* A5HP5060* N5HP4024
A4AC4018* A4HP4017* A5AC3060* N5AC3018 N5HP4030
A4AC4023* A4HP4018* A5AC4018* N5AC3024 N5HP4036
A4AC4024* A4HP4023* A5AC4024* N5AC3030 N5HP4042
A4AC4025* A4HP4024* A5AC4030* N5AC3036 N5HP4048
A4AC4029* A4HP4030* A5AC4036* N5AC3042 N5HP4060
A4AC4030* A4HP4036* A5AC4042* N5AC3048 N5HP5018
A4AC4031* A4HP4042* A5AC4048* N5AC3060 N5HP5024
A4AC4036* A4HP4048* A5AC4060* N5AC4018 N5HP5030
A4AC4037* A4HP4060* A5AC5018* N5AC4024 N5HP5036
A4AC4042* A4HP5018* A5AC5024* N5AC4030 N5HP5042
A4AC4043* A4HP5024* A5AC5030* N5AC4036 N5HP5048
A4AC4048* A4HP5030* A5AC5036* N5AC4042 N5HP5060
A4AC4060* A4HP5036* A5AC5042* N5AC4048
A4AC5018* A4HP5042* A5AC5048* N5AC4060
A4AC5024* A4HP5048* A5AC5060* N5AC4060
A4AC5030* A4HP5060* A5HP4018* N5AC5018

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Weight 0.32 lbs
Dimensions 0.01 × 17 × 11 in
Brand

trane
Plan Designer

Engineering Express
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
