Fujitsu: Wind Load and Tie-Down Technical Evaluation Report
Fujitsu: Wind Load and Tie-Down Technical Evaluation Report

Fujitsu: Wind Load and Tie-Down Technical Evaluation

Price range: $70.00 through $90.00 or ( 7 Tokens - 9 Tokens )

This document is sold as an engineer-certified report for permitting Fujitsu: Wind Load and Tie-Down Certification meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. Former TER 16-3202

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in) Model Number Unit Dimensions (in)
Width  Depth Height  Width  Depth Height
AOU9RL2 26.00 11.34 21.25 AOU18RLXFWH 35.46 13.02 32.68
AOU12RL2 26.00 11.34 21.25 AOU24RLXFWH 35.46 13.02 32.68
AOU9RLFW 26.00 11.44 21.25 AOU18RGLX 35.46 13.02 32.68
AOU9RLFW1 26.00 11.44 21.25 AOU24RGLX 35.46 13.02 32.68
AOU 9/12 RLS3 31.13 11.44 24.44 AOU30RGLX 35.46 13.02 32.68
AOU15RLS3 31.13 11.44 24.44 AOU36RGLX 35.46 13.02 32.68
AOU 9/12 RLS3H 31.13 11.44 24.44 AOU18RLX 35.46 13.02 32.68
AOU15RLS3H 31.13 11.44 24.44 AOU24RLX 35.46 13.02 32.68
AOU 18/24 RLB 31.13 11.44 24.44 AOU36RLX 35.46 13.02 32.68
AOU 9/12/15 RLFF 31.13 11.44 24.44 AOU18RLXFZ 35.46 13.02 27.56
AOU 9/12 RLFFH 31.13 11.44 24.44 AOU24RLXFZ 35.46 13.02 27.56
AOU15RLFFH 31.13 11.44 24.44 AOU36RLXFZ1 35.46 13.02 32.68
AOU 9/12 RLFC 31.09 11.34 24.50 AOU18RLXFZH 35.46 13.02 32.68
AOU18RLFC 31.09 11.34 24.50 AOU24RLXFZH 35.46 13.02 32.68
AOU9RLS2 31.09 11.34 24.50 WHM24SZA21S 33.88 12.25 26.38
AOU12RLS2 31.09 11.34 24.50 WHM36SZA21S 37.38 13.38 33.00
AOU15RLS2 31.09 11.34 24.50 WHU18SZA21S 33.88 12.25 26.38
AOU 9/12 RLS2H 31.09 11.34 24.50 WHU24SZA21S 37.38 13.38 33.13
AOU15RLS2H 31.09 11.34 24.50 AOU48RLXFZ1 38.25 14.63 36.00
AOU12RLFW 31.00 11.44 21.25 AOU45RLXFZ 38.19 14.56 39.31
AOU12RLFW1 31.00 11.44 21.25 AOU45RLXFZ 38.19 14.57 39.29
AOU9RL2 25.98 11.34 21.26 AOU36RLXFZH 38.19 14.57 39.29
AOU12RL2 25.98 11.34 21.26 AOU36RLAVS 38.19 14.57 39.29
AOU18RLB 31.10 11.34 24.41 AOU48RLAVS 38.19 14.57 39.29
AOU124RLB 31.10 11.34 24.41 AOU36RLAVS4 38.19 14.56 39.31
AOUG09LMAS1 31.38 11.34 21.34 AOU48RLAVS4 38.19 14.56 39.31
AOUG12LMAS1 31.38 11.34 21.34 AOUG36LMAS1 38.19 14.56 39.31
AOUG09LZAS1 31.38 11.34 24.88 AOUG48LMAS1 38.19 14.56 39.31
AOUG12LZAS1 31.38 11.34 24.88 AOUH30LUAH1 38.19 14.56 39.31
AOUG15LZAS1 31.38 11.34 24.88 WHP42M5A21S 37.38 13.38 41.31
AOUG09LZAH1 31.38 11.34 24.88 WHU36SZA21S 37.38 13.38 41.38
AOUG12LZAH1 31.38 11.34 24.88 AOU 36/48 RLAVM 38.19 14.56 52.50
AOUG15LZAH1 31.38 11.34 24.88 AOU60RLAVM 38.19 14.56 52.50
AOU9RLFF 31.10 11.34 24.41 AOU42RLX 35.50 13.00 50.88
AOU12RLFF 31.10 11.34 24.41 AOU30RLXEH 35.44 13.00 50.81
AOU15RLFF 31.10 11.34 24.41 AOU30RLXEH 35.46 13.02 50.79
AOU9RLFFH 31.10 11.34 24.41 AOU36RLAVM 38.19 14.57 52.52
AOU12RLFFH 31.10 11.34 24.41 AOU42RGLX 35.46 13.02 50.79
AOU15RLFFH 31.10 11.34 24.41 AOU48RGLX 35.46 13.02 50.79
AOU9RLFC 31.10 11.34 24.41 AOU48RLAVM 38.19 14.57 52.52
AOU12RLFC 31.10 11.34 24.41 AOU60RLAVM 38.19 14.57 52.52
AOU18RLFC 31.10 11.34 24.41 AOU36RLAVM4 38.19 14.56 52.50
AOUH09LMAH1 31.44 11.44 21.31 AOU42RLX 35.44 13.00 50.78
AOUH09LMAS1 31.44 11.44 21.31 AOU48RLAVM4 38.19 14.56 52.50
AOUH09LPAS1 26.13 11.44 21.31 AOU60RLAVM4 38.19 14.56 52.50
AOUH09LUAS1 31.44 11.44 21.31 AOUH36LMAH1 41.88 18.81 52.50
AOUH12LEAS1 19.69 19.31 14.31 AOUH48LMAH1 41.88 18.81 52.50
AOUH12LMAH1 31.44 11.44 21.31 WHM48SZA21S 37.38 13.38 54.63
AOUH12LMAS1 31.44 11.44 21.31 WHM60SZA21S 37.38 13.38 54.63
AOUH12LMBH1 31.44 11.44 21.31 AOLH09KNAS1 26.13 11.44 21.31
AOUH12LMBS1 31.44 11.44 21.31 AOLH12KNAS1 26.13 11.44 21.31
AOUH12LPAS1 31.44 11.44 21.31 AOUH09KPAS1 26.13 11.44 21.31
AOUH12LUAS1 31.44 11.44 24.88 AOUH12KPAS1 26.13 11.44 21.31
AOUH18LPAS1 31.44 11.44 24.88 AOUH18KPAS1 31.44 11.44 24.88
AOUH18LUAS1 31.44 11.44 24.88 AOUH24KPAS1 31.44 11.44 24.88
AOUH24LPAS1 31.44 11.44 24.88 AOUH30KPAS1 37.00 12.63 31.00
WHU09SZA21S 31.88 11.00 22.88 AOUH36KPAS1 37.00 12.63 31.00
WHU12SZA21S 31.88 11.00 22.88 AOUH09KMAS1 31.44 11.44 21.31
WHZ09SZA21S 31.88 11.00 23.06 AOUH12KMAS1 31.44 11.44 21.31
WHZ12SZA21S 31.88 11.00 23.06 AOUH09KZAH1 31.44 11.44 24.88
AOU 18/24 RLXFW1 35.38 13.00 32.75 AOUH12KZAH1 31.44 11.44 24.88
AOU18RLXFW 35.38 13.00 32.75 AOUH15KZAH1 31.44 11.44 24.88
AOU 18/24 RLXFWH 35.44 13.00 32.69 AOUH18KZAH1 37.00 12.63 31.00
AOU24RLXFW 35.38 13.00 32.75 AOUH24KZAH1 37.00 12.63 31.00
AOU30RLX 35.38 13.00 32.75 AOUH09KTAP1 31.44 11.44 24.88
AOU 30/36 RLXB 35.44 13.00 32.69 AOUH12KTAP1 32.31 12.38 28.19
AOU 18/24 RLX 35.50 13.00 32.75 AOUH15KTAP1 32.31 12.38 28.19
AOU36RLX 35.50 13.00 32.75 AOUH09KUAS1 31.44 11.44 21.31
AOU 18/24 RLXS 35.38 13.00 32.75 AOUH12KUAS1 31.44 11.44 24.88
AOU36RLXFZ1 35.44 13.00 32.69 AOUH18KUAS1 31.44 11.44 24.88
AOU18RLXFZH 35.44 13.00 32.69 AOUH24KUAS1 37.00 12.63 31.00
AOU24RLXFZH 35.44 13.00 32.69 AOUH30KUAS1 37.00 12.63 39.31
AOU36RLXFZH 35.44 13.00 32.69 AOUH36KUAS1 37.00 12.63 39.31
AOU36RLXFZ 35.44 13.00 32.69 AOUH42KUAS1 37.00 12.63 39.31
AOU36RLXFZ1 35.44 13.00 32.69 AOUH48KUAS1 37.00 12.63 39.31
AOU18RLXFZ 35.44 13.00 27.56 AOUH18KWAS2 32.31 12.38 28.19
AOU24RLXFZ 35.44 13.00 27.56 AOUH24KWAS3 32.31 12.38 28.19
AOU30RLXB 35.46 13.02 32.68 AOUH36KWAS4 32.31 12.38 34.81
AOU36RLXB 35.46 13.02 32.68 AOUH45KWAS5 37.00 12.63 39.31
AOUH18LMAS1 37.00 12.63 31.00 AOUH18KWAH2 32.31 12.38 34.81
AOUH24LMAS1 37.00 12.63 31.00 AOUH24KWAH3 32.31 12.38 34.81
AOUH30LPAS1 37.00 12.63 31.00 AOUH36KWAH4 37.00 12.63 39.31
AOUH36LPAS1 37.00 12.63 31.00 AOUK024SSAN7 37.00 12.63 39.31
AOU18RLXFW1 35.46 13.02 32.68 AOUK036SSAN7 37.00 12.63 39.31
AOU24RLXFW1 35.46 13.02 32.68 AOUK048SSAN7 37.00 12.63 39.31

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

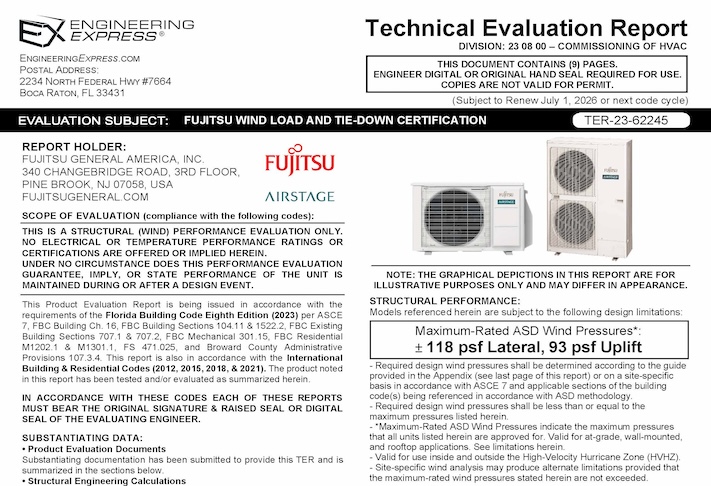

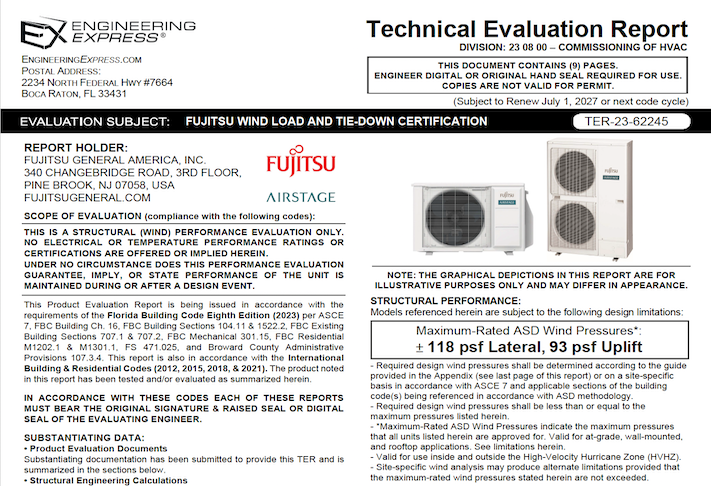

View Sample

Weight 0.8 lbs
Dimensions 11 × 8.5 × 0.0225 in
Brand

Fujitsu
Plan Designer

Engineering Express
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
