1X Wood Buck Installation Detail (MPS 20-35532)


1X Wood Buck Installation Detail (MPS 20-35532)

$100.00$200.00 or ( 10 Tokens - 20 Tokens )

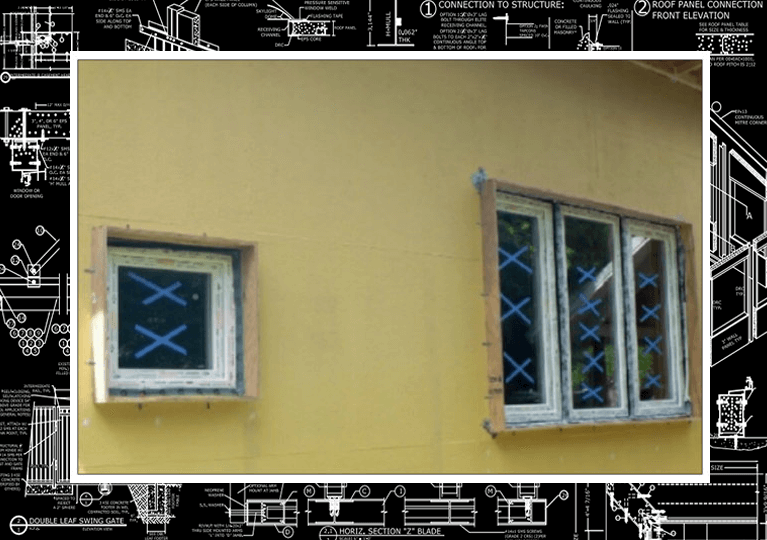

This 1X wood buck master plan sheet provides generic installation details for concrete or wood attachments using mechanically attached screws. This document has been designed to meet the requirements of the selected  Building Code and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic and installations beyond the scope and limitations of this document shall require site specific engineering. Previous MPS # 18-5802

For site specific projects, click here to request a quote.

How to use this document:

  1. Determine the site-specific design pressure for the opening in question  How?
  2. Review your window/door product evaluation document to ensure it is within the limitations of the pressure & attachment to this buck learn more
  3. Verify this plan is within the limits of the above documents.
  4. Submit to the governing municipality the above documentation and verification by others that this plan is suitable for use to obtain your permit.



The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
