2X Wood Buck Installation Detail (MPS 20-35478)

2X Wood Buck Installation Detail (MPS 20-35478)

$100.00$200.00 or ( 10 Tokens - 20 Tokens )

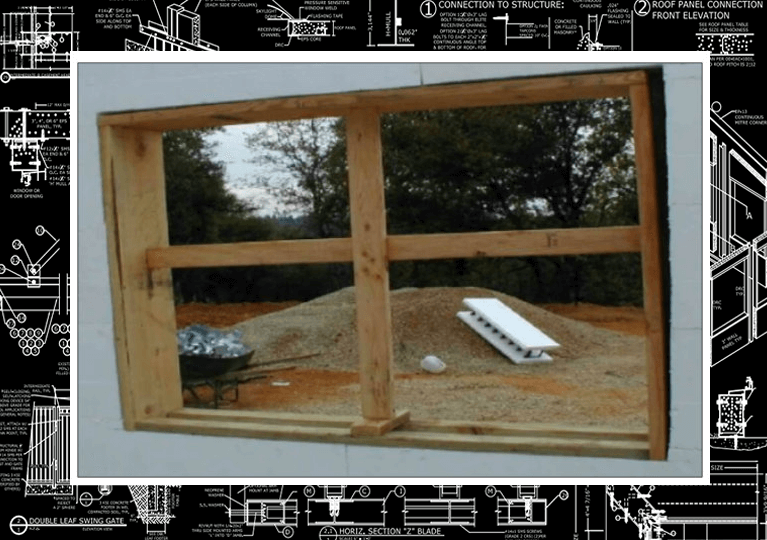

This 2X wood buck master plan sheet provides installation details for concrete or wood attachments using mechanically attached screws. It has been designed to meet the requirements of the selected Building Code. Use it along with your other project documents to obtain a building permit. Previous MPS #18-6160

For site specific projects, click here to apply for membership and request a quote (contractors & manufacturers only, no homeowners for site specific work).


How to use this document:

  1. Determine the site-specific design pressure for the opening in question  How?
  2. Review your window/door product evaluation document to ensure it is within the limitations of the pressure & attachment to this buck learn more
  3. Verify this plan is within the limits of the above documents.
  4. Submit to the governing municipality the above documentation and verification by others that this plan is suitable for use to obtain your permit.
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
This field can't be Empty
This field can't be Empty

Weight 0.04 lbs
Dimensions 0.0100 × 17.0000 × 11.0000 in
Plan Type

Master Plan Sheet – MPS



Plan Format

Digitally Sealed File, Sealed Hardcopy

Product Documents
