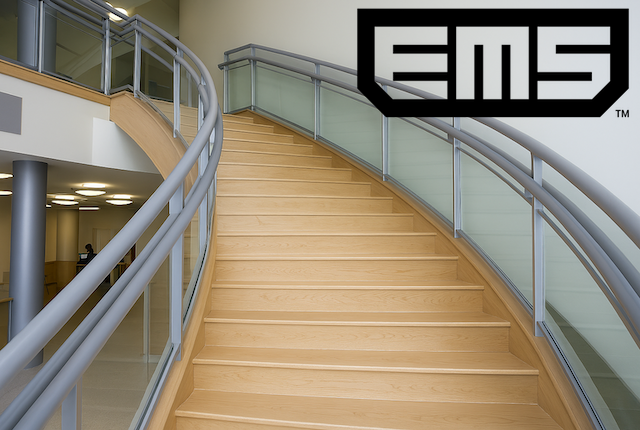

Eastern Metal Supply: 2.5 Mechanically Fastened Glass Rail System (MPS 21-37039)
Eastern Metal Supply: 2.5 Mechanically Fastened Glass Rail System (MPS 21-37039)
This master plan sheets certify a variety of installation options and conditions for Eastern Metal Supply’s Glass Railing System. The plans provide structural support and wind pressure certification for the system. The documents have been designed to meet the requirements of the selected Building Code inside and outside the HVHZ1 and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. Previous MPS #17-5516.
HOW THIS PLAN IS USED:
- Purchase and receive a signed and sealed copy of this plan to be used for permit.
- As this is NOT site-specific, a design professional (such as the architect or engineer of record) must approve the applicability of this product to a site-specific address. This document alone is NOT to be used to obtain a permit without approval for use as a site-specific application.
- Obtain your permit and install the product. The installation will be field reviewed for compliance with the architectural and master plans. Any discrepancies shall require a full site-specific evaluation by this firm or a determination by others that modifications are acceptable/how to repair. Any modifications to our plans become the responsibility of others.
It is recommended that site-specific plans be generated for this type of work. This is a specialty of Engineering Express. Click here to apply for access to our system & request a quote for site-specific services.
HVHZ= High Velocity Hurricane Zone in S. Florida
