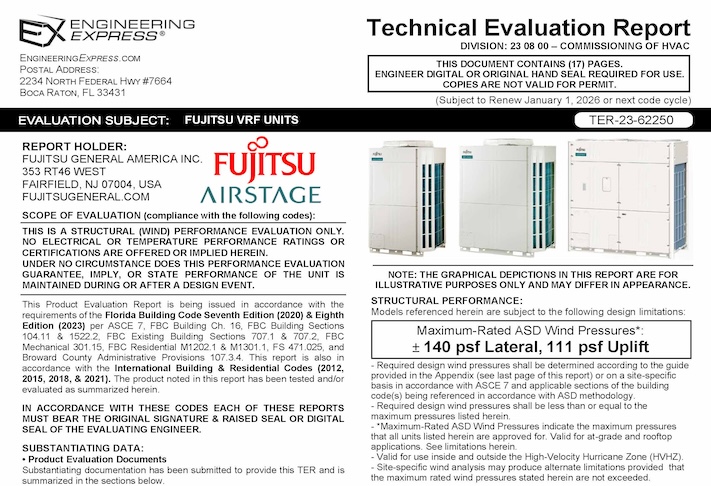

This document is sold as an engineer-certified report for permitting Fujitsu: VRF Units meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.
Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.
This report applies to the following model numbers:
Model Number
Unit Dimensions (in)
Width
Depth
Height
AOUA120ULBV5
48 13/16
30 1/8
66 9/16
AOUA120ULCV5
36 5/8
30 1/8
66 9/16
AOUA144ULBV5
63
30 1/8
66 9/16
AOUA144ULCV5
63
30 1/8
66 9/16
AOUA168ULBV5
63
30 1/8
66 9/16
AOUA168ULCV5
63
30 1/8
66 9/16
AOUA192ULBV5
63
30 1/8
66 9/16
AOUA192ULCV5
63
30 1/8
66 9/16
AOUA72ULBV5
36 5/8
30 1/8
66 9/16
AOUA72ULCV5
36 5/8
30 1/8
66 9/16
AOUA96ULBV5
36 5/8
30 1/8
66 9/16
AOUA96ULCV5
36 5/8
30 1/8
66 9/16
The above individual unit models can be combined and installed as “combination units” under different model numbers than those shown above, so long as each unit module is listed above and installed per the specifications required in the TER.
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
