Lennox: VRF Cabinets

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

This certification is applicable to the Lennox VRF Cabinets. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7-16 for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

This product can be used with the following Model Numbers:

Model Number Depth
 (in)		 Width       (in) Height          (in)
VPB072H4M-3G 31  1/2 52  3/4 64  3/8
VPB072H4M-3Y 31  1/2 52  3/4 64  3/8
VPB096H4M-3G 31  1/2 52  3/4 64  3/8
VPB096H4M-3Y 31  1/2 52  3/4 64  3/8
VPB120H4M-3G 31  1/2 52  3/4 64  3/8
VPB120H4M-3Y 31  1/2 52  3/4 64  3/8
VPB144H4M-3G 32  5/8 68  1/2 72     0
VPB144H4M-3Y 32  5/8 68  1/2 72     0
VPB168H4M-3G 32  5/8 68  1/2 72     0
VPB168H4M-3Y 32  5/8 68  1/2 72     0
VPB192H4M-3G 32  5/8 68  1/2 72     0
VPB192H4M-3Y 32  5/8 68  1/2 72     0
VRB072H4M-3G 31  1/2 52  3/4 64  3/8
VRB072H4M-3Y 31  1/2 52  3/4 64  3/8
VRB096H4M-3G 31  1/2 52  3/4 64  3/8
VRB096H4M-3Y 31  1/2 52  3/4 64  3/8
VRB120H4M-3G 31  1/2 52  3/4 64  3/8
VRB120H4M-3Y 31  1/2 52  3/4 64  3/8
VRB144H4M-3G 32  5/8 68  1/2 72     0
VRB144H4M-3Y 32  5/8 68  1/2 72     0
VRB168H4M-3G 32  5/8 68  1/2 72     0
VRB168H4M-3Y 32  5/8 68  1/2 72     0
VRB192H4M-3G 32  5/8 68  1/2 72     0
VRB192H4M-3Y 32  5/8 68  1/2 72     0





Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

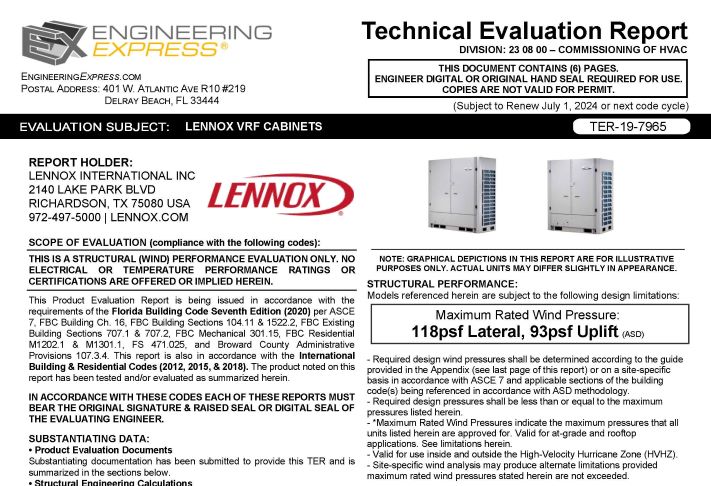

View Sample

Read Disclaimer & Important Information for Use
Weight 0.8000 lbs
Dimensions 0.0450 × 8.5000 × 11.0000 in
Plan Designer

Engineering Express
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Plan Format

Digitally Sealed File, Sealed Hardcopy
Brand

Lennox
