Pad Depot: 29 x 52 x 4 Foam Core Generator Pad
$30.00 or ( 3 Tokens )
This product is an engineer-sealed report for Pad Depot 29 x 52 x 4 Foam Core Generator Pad. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above,  and upon ordering, will be signed and sealed by a Professional Engineer of the firm.
Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #22-51416)
BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN
COMPANY | CAPACITY | MODEL | DIMENSIONS | |||
W, IN | L, IN | H, IN | WT, LB | |||
GENERAC | 10 KW | GUARDIAN 5882, 7171 OR SIMILAR | 48 | 25 | 29 | 338 |
GENERAC | 14 KW | GUARDIAN 7223, 7224, 7225, OR SIMILAR | 48 | 25 | 29 | 385 |
GENERAC | 16 KW | GUARDIAN 7176, 7177, 7178, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 17 KW | GUARDIAN 5873, 5885, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 18 KW | GUARDIAN 7226, 7228, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 20 KW | GUARDIAN 7038, 7039, 7077, OR SIMILAR | 48 | 25 | 29 | 436 |
GENERAC | 22 KW | GUARDIAN 7042, 7043, OR SIMILAR | 48 | 25 | 29 | 455 |
GENERAC | 24 KW | GUARDIAN 7209, 7210, OR SIMILAR | 48 | 25 | 29 | 455 |
GENERAC | 26 KW | GUARDIAN 7290, 7291, OR SIMILAR | 48 | 25 | 29 | 518 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 47 | 26 | 33 | 440 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 47 | 26 | 33 | 490 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 48 | 26 | 29 | 420 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 48 | 26 | 29 | 467 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 47 | 26 | 33 | 555 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 47 | 26 | 33 | 600 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 48 | 26 | 29 | 535 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 48 | 26 | 29 | 580 |
Product Documents
Sample Documents
Weight | .48 lbs |
---|---|
Dimensions | 0.01 × 17 × 11 in |
Plan Format | Digitally Sealed Online-Only File, Raised Sealed Physical Copy |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Material | Concrete |
Brand | Pad Depot |
Plan Designer | Engineering Express |
Storefront | precastpads, Engineering Express |
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Related Plans
-

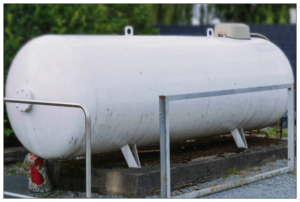

Pad Depot: Precast Concrete Pad for 120 gallon propane cylinder Performance Evaluation
