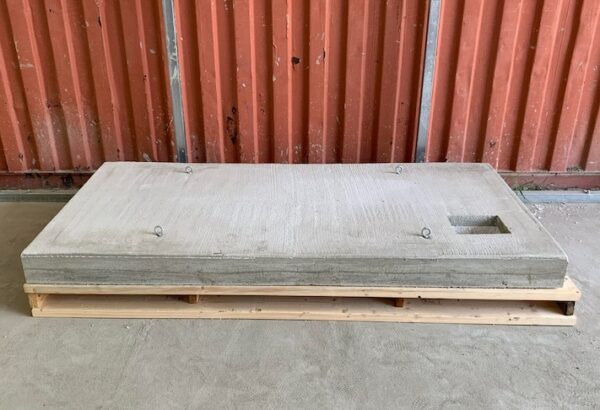

Pad Depot: 40 x 72 x 5.5 Foam Core Generator Pad
Pad Depot: 40 x 72 x 5.5 Foam Core Generator Pad

Pad Depot: 40 x 72 x 5.5 Foam Core Generator Pad

$35.00 – $40.00 or ( 3.5 Tokens - 4 Tokens )

This product is an engineer-sealed report for Pad Depot 40 in x 72 in x 5.5 in Foam Core Generator Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, Approved for Seismic Design Category D (Up to Ss = 2.1), based on the limitations stated, and upon ordering, will be signed and sealed by a Professional Engineer of the firm. (Former Plan #22-50625)

Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.

For site-specific installations and work beyond the limitations of the plan, please submit a site-specific order by visiting www.engineeringexpress.com/quote

MODELS FOR PERMIT COVERED WITH THIS PLAN:
BRANDS: GENERAC

MODEL DIMENSIONS
WIDTH
IN		 LENGTH
IN		 HEIGHT
IN
QT 02224 ANAX OR SIMILAR 63 31 39
RG022 OR SIMILAR 63 31 39
RG025-AL OR SIMILAR 63 31 39
RG025-ST OR SIMILAR 63 31 39
QT 02724 ANAX OR SIMILAR 63 31 39
RG027-AL OR SIMILAR 63 31 39
RG030-AL OR SIMILAR 63 31 39
RG030-ST OR SIMILAR 63 31 39
Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Product Documents

Sample Documents

Product Documents

Sample Documents

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Plan Type

Master Plan Sheet – MPS, Manufacturer Plans
Material

Concrete
Brand

Pad Depot
Plan Designer

Engineering Express
Storefront

precastpads, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
