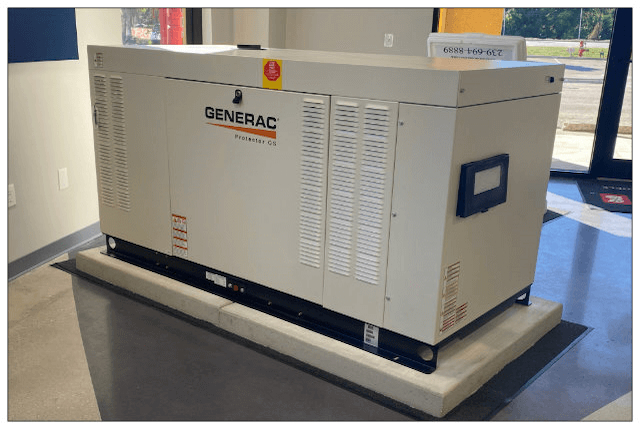

Precast Pads: Solid Concrete Dual Generator Pad 42 x 84 x 24 Inch Performance Evaluation

Store Home

Precast Pads: Solid Concrete Dual Generator Pad 42 x 84 x 24 Inch Performance Evaluation

$60.00 or ( 6 Tokens )

This certification applies to the Precast Pads: Solid Concrete Dual Generator Pad 42 x 84 x 24 Inch Performance Evaluation Report. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-16 & ASCE 7-22 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #21-32578)

Please note: These plans are certified for Florida ONLY.

Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.

Brand and Models Covered With This Plan:

BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN
COMPANY Capacity MODEL DIMENSIONS (IN) MIN. WEIGHT (LBS)
WIDTH  LENGTH HEIGHT
GENERAC 22 KW QT02224ANAX 29.0 62.2 33.5 843
GENERAC 22 KW RG022 / RG02224ANAX 30.6 62.2 38.6 905
GENERAC 25 KW RG025 / RG02515A ALUM 30.6 62.2 38.6 777
GENERAC 25 KW RG025 / RG02515S STL 30.6 62.2 38.6 865
GENERAC 27 KW RG027 / RG02724ANAX 30.6 62.2 38.6 940
GENERAC 30 KW RG030 / RG03015ANAX ALUM 30.6 62.2 38.6 807
GENERAC 30 KW RG030 / RG03015ANSX STL 30.6 62.2 38.6 895
GENERAC 32 KW RG032 / RG3224ANAX 35.0 76.8 46.1 1225
GENERAC 36 KW RG036 / RG03624ANAX ALUM 35.0 76.8 46.1 1202
GENERAC 36 KW RG036 / RG03624ANSX STL 35.0 76.8 46.1 1255
GENERAC 38 KW RG038 / RG3824ANAX 35.0 76.8 46.1 1235
GENERAC 45 KW RG045 / RG452ANA(C)(X) ALUM 35.0 76.8 46.1 1260
GENERAC 45 KW RG045 / RG452ANS(C)(X) STL 35.0 76.8 46.1 1313
GENERAC 48 KW RG048/ QTO48 / RG4854ANA(C)(X) 35.0 76.8 46.1 1555
GENERAC 60 KW QT06024 (K/J/A/G) 33.5 77.0 45.0 1324
GENERAC 60 KW RG060 / ALUM 35.0 76.8 46.1 1422
GENERAC 60 KW RG060 / STEEL 35.0 76.8 46.1 1539
KOHLER 24 KW 24RCL / 30RCL 33.0 74.0 46.0 1260
KOHLER 30 KW 30RES 34.0 72.8 36.8 1046
KOHLER 30 KW 30REOZJB 34.0 78.7 50.2 1560
KOHLER 38 KW 38RCLB 32.9 74.0 46.0 1370
B&S 30 KW 076000 34.0 78.7 50.2 1560
CUMMINS 22 KW RS22 / C22 N6 34.0 72.0 45.5 1109
Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Product Documents

Product Documents

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Material

Concrete

Brand

PrecastPads

Plan Designer

Engineering Express

Storefront

precastpads, Engineering Express

Code

FBC 32x54x4, Miami-Dade 32x54x6

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
