Trenton Refrigeration: TE Series Units Technical Evaluation Report
Trenton Refrigeration: TE Series Units Technical Evaluation Report

Trenton Refrigeration: TE Series Units Technical Evaluation

$80.00 – $100.00 or ( 8 Tokens - 10 Tokens )

This document is sold as an engineer-certified report for permitting Trento Refrigeration: TE Series Units meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Unit Models Unit dimensions [in] Unit Models Unit dimensions [in]
Width Depth Height Width Depth Height
TEHA006M8 24 7/8 30 3/8 19 3/8 TESB100H9 65 1/8 35 7/8 41 7/8
TEHA008L6 24 7/8 30 3/8 19 3/8 TESB120H9 75 7/8 45 3/4 45 1/2
TESA050H8 52 1/4 35 7/8 41 7/8 TESB150H9 75 7/8 45 3/4 45 1/2
TESA051H8 52 1/4 35 7/8 41 7/8 TESB200H9 75 7/8 45 3/4 45 1/2
TESA075H8 52 1/4 35 7/8 41 7/8 TESB030L9 43 7/8 32 7/8 30 3/8
TESA077H8 65 1/8 35 7/8 41 7/8 TESB031L9 43 7/8 32 7/8 30 3/8
TESA080H8 65 1/8 35 7/8 41 7/8 TESB039L9 43 7/8 32 7/8 30 3/8
TESA100H8 65 1/8 35 7/8 41 7/8 TESB050L9 52 1/4 35 7/8 41 7/8
TESA120H8 75 7/8 45 3/4 45 1/2 TESB060L9 52 1/4 35 7/8 41 7/8
TESA150H8 75 7/8 45 3/4 45 1/2 TESB080L9 65 1/8 35 7/8 41 7/8
TESA200H8 75 7/8 45 3/4 45 1/2 TESB100L9 65 1/8 35 7/8 41 7/8
TESA035L 6/8 43 7/8 32 7/8 30 3/8 TESB120L9 65 1/8 35 7/8 41 7/8
TESA040L 6/8 43 7/8 32 7/8 30 3/8 TEZA007H9 24 7/8 30 3/8 19 3/8
TESA060L 6/8 52 1/4 35 7/8 41 7/8 TEZA008H9 24 7/8 30 3/8 19 3/8
TESA061L 6/8 52 1/4 35 7/8 41 7/8 TEZA009H9 24 7/8 30 3/8 19 3/8
TESA075L 6/8 52 1/4 35 7/8 41 7/8 TEZA010H9 36 3/8 30 3/8 19 7/8
TESA090L 6/8 65 1/8 35 7/8 41 7/8 TEZA011H9 36 3/8 30 3/8 19 7/8
TESA100L 6/8 65 1/8 35 7/8 41 7/8 TEZA015H9 36 3/8 30 3/8 19 7/8
TESA120L 6/8 75 7/8 45 3/4 45 1/2 TEZA020H9 36 3/8 30 3/8 19 7/8
TESA130L 6/8 75 7/8 45 3/4 45 1/2 TEZA025H9 43 7/8 32 7/8 30 3/8
TESA150L 6/8 75 7/8 45 3/4 45 1/2 TEZA030H9 43 7/8 32 7/8 30 3/8
TESA220L 6/8 75 7/8 45 3/4 45 1/2 TEZA035H9 43 7/8 32 7/8 30 3/8
TESB030H8 43 7/8 32 7/8 30 3/8 TEZA040H9 43 7/8 32 7/8 30 3/8
TESB035H8 43 7/8 32 7/8 30 3/8 TEZA045H9 43 7/8 32 7/8 30 3/8
TESB040H8 43 7/8 32 7/8 30 3/8 TEZA050H9 43 7/8 32 7/8 30 3/8
TESB050H8 52 1/4 35 7/8 41 7/8 TEZA060H9 52 1/8 35 7/8 41 7/8
TESB060H8 52 1/4 35 7/8 41 7/8 TEZA061H9 52 1/8 35 7/8 41 7/8
TESB076H8 65 1/8 35 7/8 41 7/8 TEZA070H9 65 1/8 35 7/8 41 7/8
TESB090H8 65 1/8 35 7/8 41 7/8 TEZA076H9 65 1/8 35 7/8 41 7/8
TESB100H8 65 1/8 35 7/8 41 7/8 TEZA085H9 65 1/8 35 7/8 41 7/8
TESB120H8 75 7/8 45 3/4 45 1/2 TEZA110H9 75 7/8 45 3/4 45 1/2
TESB150H8 75 7/8 45 3/4 45 1/2 TEZA150H9 75 7/8 45 3/4 45 1/2
TESB200H8 75 7/8 45 3/4 45 1/2 TEZA008L9 24 7/8 30 3/8 19 3/8
TESB030L 6/8 43 7/8 32 7/8 30 3/8 TEZA010L9 24 7/8 30 3/8 19 3/8
TESB031L 6/8 43 7/8 32 7/8 30 3/8 TEZA015L9 24 7/8 30 3/8 19 3/8
TESB039L 6/8 43 7/8 32 7/8 30 3/8 TEZA020L9 24 7/8 30 3/8 19 3/8
TESB050L 6/8 52 1/4 35 7/8 41 7/8 TEZA025L9 36 3/8 30 3/8 19 7/8
TESB060L 6/8 52 1/4 35 7/8 41 7/8 TEZA030L9 36 3/8 30 3/8 19 7/8
TESB080L 6/8 65 1/8 35 7/8 41 7/8 TEZA035L9 36 3/8 30 3/8 19 7/8
TESB100L 6/8 65 1/8 35 7/8 41 7/8 TEZA045L9 43 7/8 32 7/8 30 3/8
TESB120L 6/8 65 1/8 35 7/8 41 7/8 TEZA055L9 43 7/8 32 7/8 30 3/8
TESB030H9 43 7/8 32 7/8 30 3/8 TEZA060L9 43 7/8 32 7/8 30 3/8
TESB035H9 43 7/8 32 7/8 30 3/8 TEZA075L9 52 1/8 35 7/8 41 7/8
TESB040H9 43 7/8 32 7/8 30 3/8 TEZA085L9 52 1/8 35 7/8 41 7/8
TESB050H9 52 1/4 35 7/8 41 7/8 TEZA100L9 52 1/8 35 7/8 41 7/8
TESB060H9 52 1/4 35 7/8 41 7/8 TEZA130L9 65 1/8 35 7/8 41 7/8
TESB076H9 65 1/8 35 7/8 41 7/8 TEZA150L9 65 1/8 35 7/8 41 7/8
TESB090H9 65 1/8 35 7/8 41 7/8 TEZA170L9 75 7/8 45 3/4 45 1/2

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

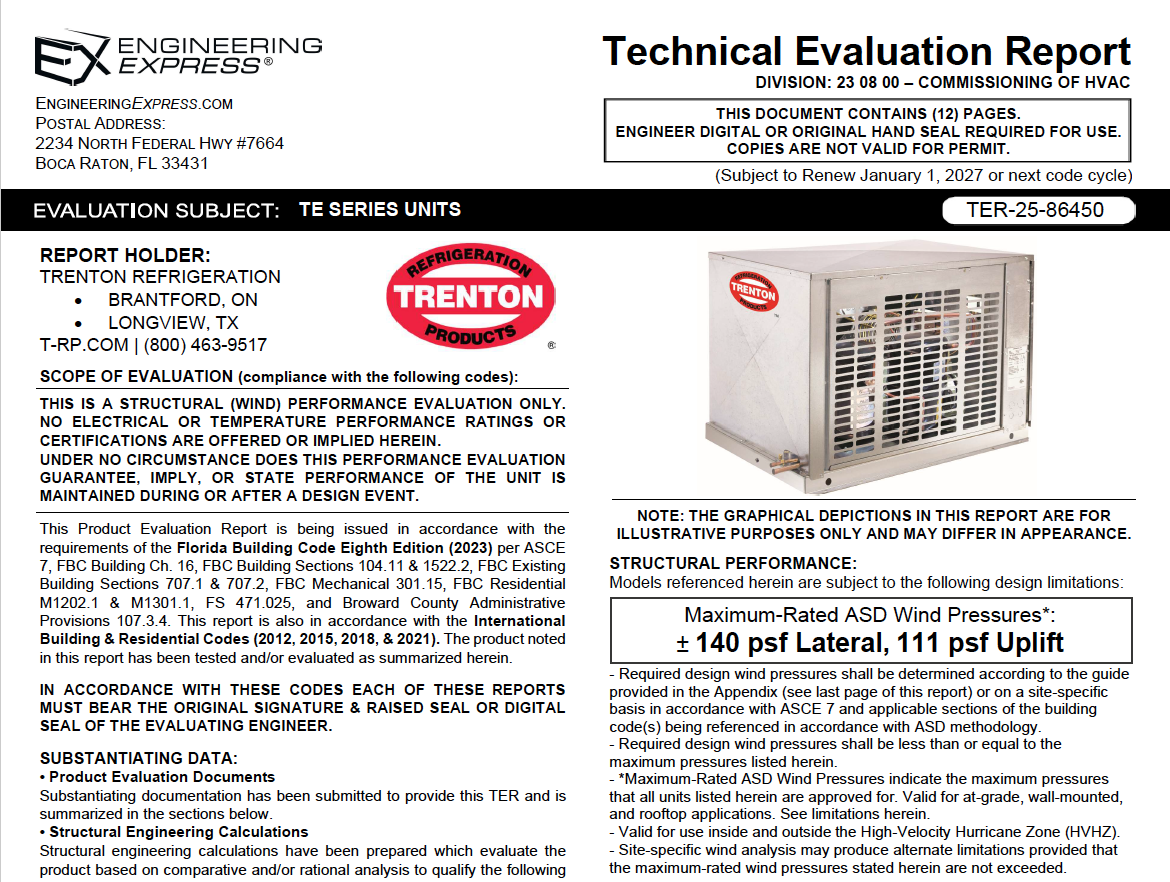

View Sample

Weight 0.48 lbs
Dimensions 0.0300 × 11.0000 × 8.5000 in
Brand

Trenton Refrigeration
Plan Type

Technical Evaluation Report-TER
Storefront

Engineering Express
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
