|0.0100 × 11 × 17 in
Master Plan Sheet – MPS, Manufacturer Plans
Digitally Sealed E-Permit File, Raised Sealed Hardcopy
DiversiTech: Exp. C Up to 175 MPH for Miami Dade And HVHZ – Solid Concrete Pad Report For Mechanical Unit Installation Permit
$40.00 – $45.00 or ( 4 Tokens - 4.5 Tokens )

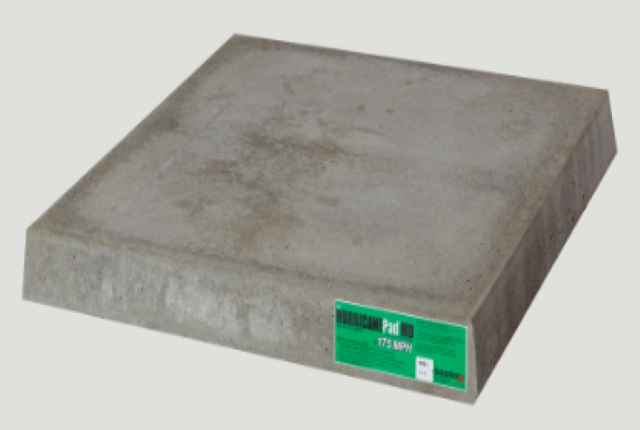

This product is an engineer-sealed report with a chart that lists approved sizes and wind pressure loads for the DiversiTech Precast, Foam-Core Concrete Pads for Mechanical Unit Installation in conditions up to 175 MPH / Exposure C in Miami Dade and the HVHZ. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above, and upon ordering, will be signed and sealed by a Professional Engineer of the firm.
Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #22-53412)
Be sure to compare the allowable wind pressure capacities listed in the drawing to those that apply to your project site.
